Mounting Bracket for Generic Linear Actuators

This is the recommended bracket for mounting the generic linear actuators. The bracket also works with the Concentric LD series linear actuators, although it fits a little loosely.

The brackets are made of zinc-plated steel and come with a clevis pin and split pin for attaching the bracket to an actuator, although hardware for connecting the bracket to a frame or chassis is not included. Two brackets are required for each linear actuator.

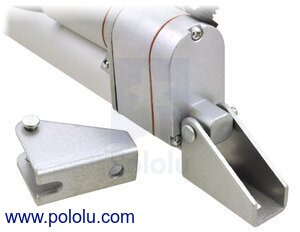

Bracket connected to one end of a generic linear actuator.

Generic linear actuator bracket dimensions (in mm).
