Relay Modules

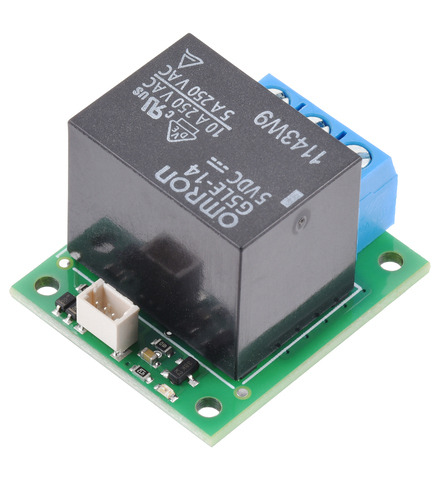

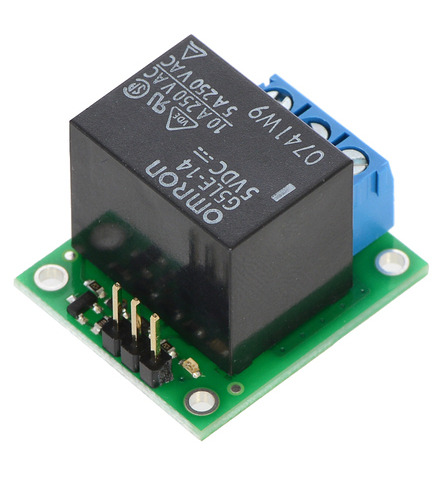

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB with a soldered-in 5 V relay, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB along with an Omron G5LE-14-DC5 5 V relay, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relay is rated for up to 10 A under most conditions.

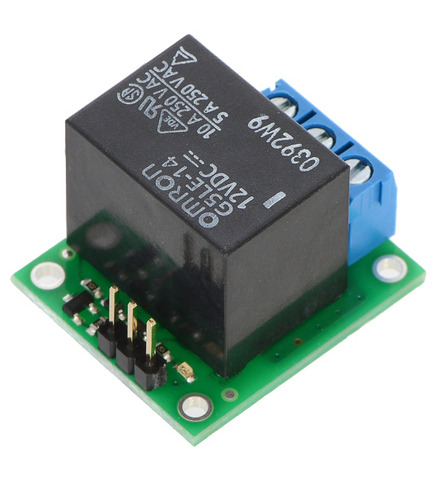

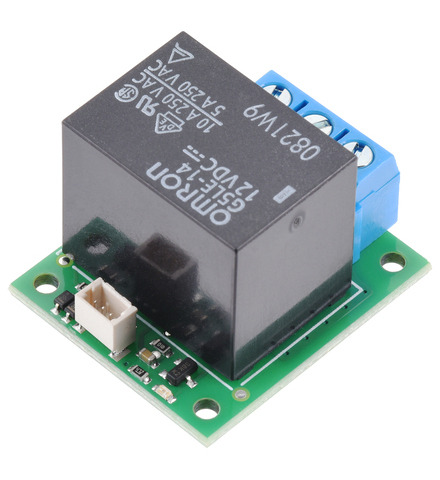

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB with a soldered-in 12 V relay, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relay is an Omron G5LE-14-DC12 and is rated for up to 10 A under most conditions.

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB along with an Omron G5LE-14-DC12 12 V relay, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relay is rated for up to 10 A under most conditions.

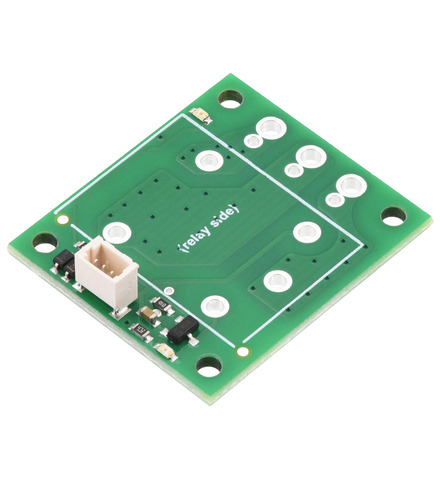

Pololu’s basic relay carrier board makes it easy to incorporate a “sugar cube”-style power relay into your electronics project. An integrated MOSFET allows the relay to be controlled with a low-current digital input, and a pair of indicator LEDs show when the relay is activated. The three control pins have a 0.1″ spacing compatible with standard solderless breadboards and servo cables, and the switch pins are available for use with 5mm-pitch terminal blocks or 0.2″-spaced pins.

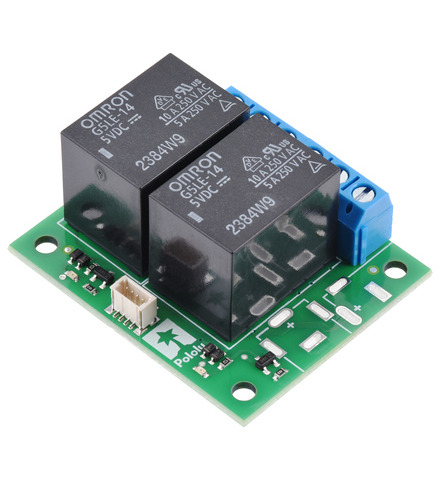

The Pololu basic 2-channel relay carrier modules allow simple, independent control of two single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. This item includes the basic carrier PCB with two soldered-in 5 V relays, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relays are Omron G5LE-14-DC5 and are rated for up to 10 A under most conditions.

The Pololu basic 2-channel relay carrier modules allow simple, independent control of two single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. This item includes the basic carrier PCB along with two Omron G5LE-14-DC5 5 V relays, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relays are rated for up to 10 A under most conditions.

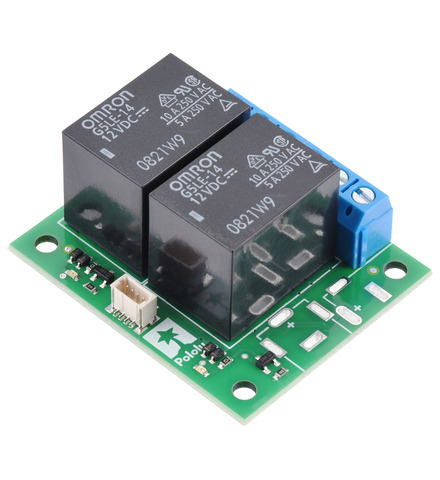

The Pololu basic 2-channel relay carrier modules allow simple, independent control of two single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. This item includes the basic carrier PCB with two soldered-in 12 V relays, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relays are Omron G5LE-14-DC12 and are rated for up to 10 A under most conditions.

The Pololu basic 2-channel relay carrier modules allow simple, independent control of two single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. This item includes the basic carrier PCB along with two Omron G5LE-14-DC12 12 V relays, 5.0 mm terminal blocks, and 0.1" male headers in straight and right-angle versions. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed. The included power relays are rated for up to 10 A under most conditions.

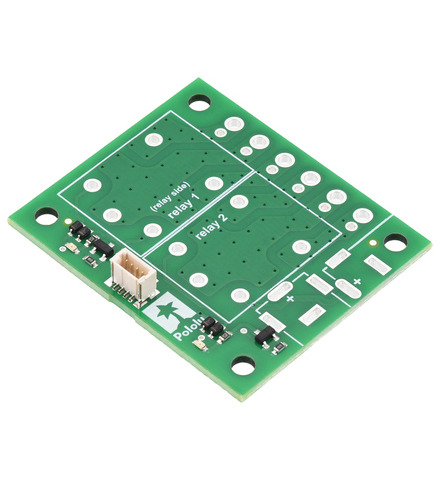

Pololu’s basic 2-channel relay carrier board makes it easy to incorporate two “sugar cube”-style power relays into your electronics project. Integrated MOSFETs allow the relays to be controlled with low-current digital inputs, an indicator LEDs show when the relays are activated. The control pins have a 0.1″ spacing compatible with standard solderless breadboards and servo cables, and the switch pins are available for use with 5mm-pitch terminal blocks or 0.2″-spaced pins.

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This assembled version ships with the 5V relay, terminal block, and straight male header pins soldered in, so it can be integrated into hobby RC systems without the need for additional soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This partial-kit version includes the printed circuit board along with a 5V relay, terminal block, 0.1″ male headers in straight and right-angle versions, and a shorting block. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed and require soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.
