RC Switches

This RC switch converts hobby radio control pulses to digital on/off signals for use in RC switch and simple RC adapter applications. One output indicates the presence of a valid RC signal, and the other indicates whether the switch is active. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation.

This RC switch converts hobby radio control pulses to digital on/off signals and has an integrated small, low-side MOSFET that allows it to drive small loads (up to around 3 A), such as lighting or small actuators. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation.

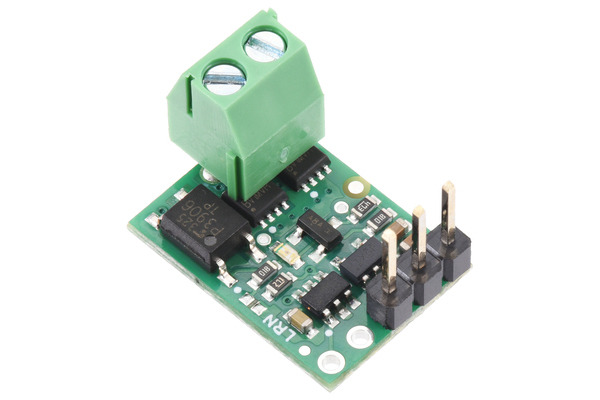

This RC switch converts hobby radio control pulses to digital on/off signals and has an integrated medium, low-side MOSFET that allows it to drive moderate loads (up to around 15 A), such as lighting or small actuators. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. The board also includes a linear regulator that allows it to be powered with voltages between 2.5 V and 16 V.

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This assembled version ships with the 5V relay, terminal block, and straight male header pins soldered in, so it can be integrated into hobby RC systems without the need for additional soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This partial-kit version includes the printed circuit board along with a 5V relay, terminal block, 0.1″ male headers in straight and right-angle versions, and a shorting block. Surface-mount components are pre-assembled on the PCB, but the through-hole components are not installed and require soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.

This compact four-channel multiplexer of hobby radio control (RC) pulses allows for easy switching between two independent signal sources. An auxiliary RC channel selects whether the output comes from the master or the slave source. The activation threshold and direction are configurable. This assembled version ships with 0.1″-pitch male headers pins soldered in, so it can be integrated into hobby RC systems without the need for additional soldering.

This compact four-channel multiplexer of hobby radio control pulses allows for easy switching between two independent signal sources. An auxiliary channel selects whether the output comes from the master or the slave source. The activation threshold and direction are configurable. Surface-mount components are pre-assembled on the PCB, but through-hole components are not installed and require soldering.
