QTR-1A Reflectance Sensor

Discontinuation Notice: We are now only selling this product in packs of two.

Functional Description

The Pololu QTR-1A reflectance sensor carries a single infrared LED and phototransistor pair. The phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection. For a similar sensor with a digital I/O-compatible output, see the QTR-1RC reflectance sensor.

The LED current-limiting resistor is set to deliver approximately 17 mA to the LED when VIN is 5 V. The current requirement can be met by some microcontroller I/O lines, allowing the sensor to be powered up and down through an I/O line to conserve power.

This sensor was designed to be used with the board parallel to the surface being sensed. Because of its small size, multiple units can easily be arranged to fit various applications such as line sensing and proximity/edge detection. For a line sensor with eight of these units arranged in a row, please see the QTR-8A reflectance sensor array; for a similar array of three slightly different sensor components, see the QTR-3A. For a smaller sensor with longer range, and intended for use with the board perpendicular to the surface, please see the QTR-L-1A reflectance sensor.

QTR sensor size comparison. Top row: QTRX-HD-07, QTR-HD-07; middle row: QTR-3, QTR-1, QTR-L-1; bottom row: QTR-8.

Specifications

• Dimensions: 0.3" x 0.5" x 0.1" (without optional header pins installed)
• Operating voltage: 5.0 V
• Supply current: 17 mA
• Output format: analog voltage
• Output voltage range: 0  to supplied voltage
• Optimal sensing distance: 0.125" (3 mm)
• Maximum recommended sensing distance: 0.25" (6 mm)
• Weight without header pins: 0.008 oz (0.2 g)

Interfacing with the QTR-1A Output

There are several ways you can interface with the QTR-1A output:

• Use a microcontroller’s analog-to-digital converter (ADC) to measure the voltage.
• Use a comparator with an adjustable threshold to convert the analog voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.
• Connect the output directly to the digital I/O line of a microcontroller and rely upon its internal comparator.

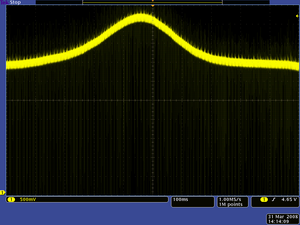

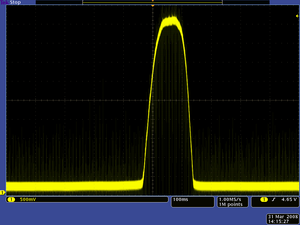

This last method will work if you are able to get high reflectance from your white surface as depicted in the left image, but will probably fail if you have a lower-reflectance signal profile like the one on the right.

Our Pololu AVR library provides functions that make it easy to use these sensors with our Orangutan robot controllers; please see the QTR Reflectance Sensors section of our library command reference for more information. We also have a Arduino library for these sensors.

Included Components

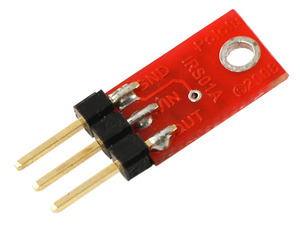

This module has a single mounting hole intended for a #2 screw (not included); if this mounting hole is not needed, this portion of the PCB can be ground off to make the unit even smaller. The reflectance sensor ships with a 3-pin 0.1" header strip, which can be soldered in the conventional perpendicular orientation or parallel to the PCB, as shown below. You can also solder wires, such as ribbon cable, directly to the pads for the smallest installation.

An example of soldering header pins parallel to QTR-1A PCB for compact installation.
