Solarbotics RM3 (Replacement Motor for GM2/3/8/9, Regular Motor 3)

Pololu item #: 604
Brand: Solarbotics
RoHS 3 status: supplier unspecified

This product has been discontinued.

Please consider our 6V, 130-size brushed DC motor as an alternative.

This is the standard brushed DC motor found in the GM2, GM3, GM8, and GM9 gear motors from Solarbotics. It comes with an 8-tooth pinion gear, and motor replacement is a snap! The RM3 can even be used to replace the higher-current FA-130 motors in many of the Tamiya gearboxes.

 Description Specs (4) Pictures (1) Resources (0) FAQs (0) On the blog (0) Distributors (0)

Discontinuation Notice: The RM3 has been discontinued. Please consider our 6V, 130-size brushed DC motor as an alternative.

This is the standard brushed DC motor found in the GM2, GM3, GM8, and GM9 gear motors from Solarbotics. It nominally runs at 6 V and consumes roughly 35 mA free running, and roughly 800 mA at stall. If you’ve worn out the motor in the GM2/3/8/9, replacing the gear motor is easy — just remove the motor retainer strap, press the included pinion gear onto the new motor shaft, and reinstall — that’s it!

Specifications

  • Replacement motor for GM2, GM3, GM8, and GM9
  • Nominal voltage: 6 V
  • No-load current: ~ 35 mA
  • Stall current: ~ 800 mA
  • ~ 2.8 × 1.6 × 1.9 cm
  • ~ 0.02 kg
  • Includes 8-tooth pinion gear!

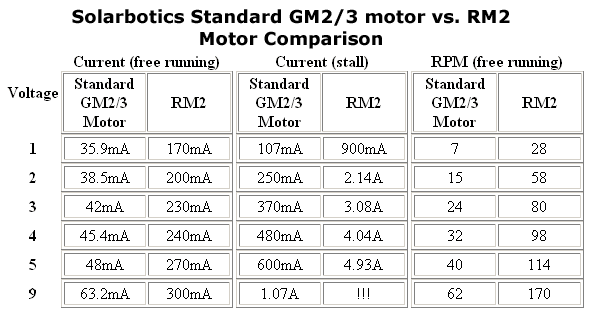

Solarbotics RM3 (standard GM2/3/8/9) motor vs RM2 motor comparison.

Controlling the RM3 motor

The RM3 motor is great for use with our qik 2s9v1 dual serial motor controller, Orangutan SV-328 robot controller, Baby Orangutan robot controller, TB6612FNG dual motor driver carrier.

Pololu qik 2s9v1 dual serial motor controller (older version with large silver electrolytic capacitor).

A top view of the Orangutan SV-328.

Baby Orangutan B-48/B-168/B-328.

TB6612FNG dual motor driver carrier (original version with electrolytic capacitor).

Use the RM3 motors in the Tamiya gearboxes!

The RM3 motors are not as electrically noisy and draw much less current than the FA-130 motors used in many of the Tamiya gearboxes. The two motors are the same size, so if you would like to use our TB6612-based motor drivers, such as the qik 2s9v1 dual serial motor controller, Orangutan SV-328 robot controller, or Baby Orangutan robot controller, with the Tamiya gearboxes, you can simply replace the original Tamiya motors with the RM3 and you’ll be set! (Tamiya gearboxes that work with the RM3 include the popular 70168 Double Gearbox and 70097 Twin-Motor Gearbox.)
